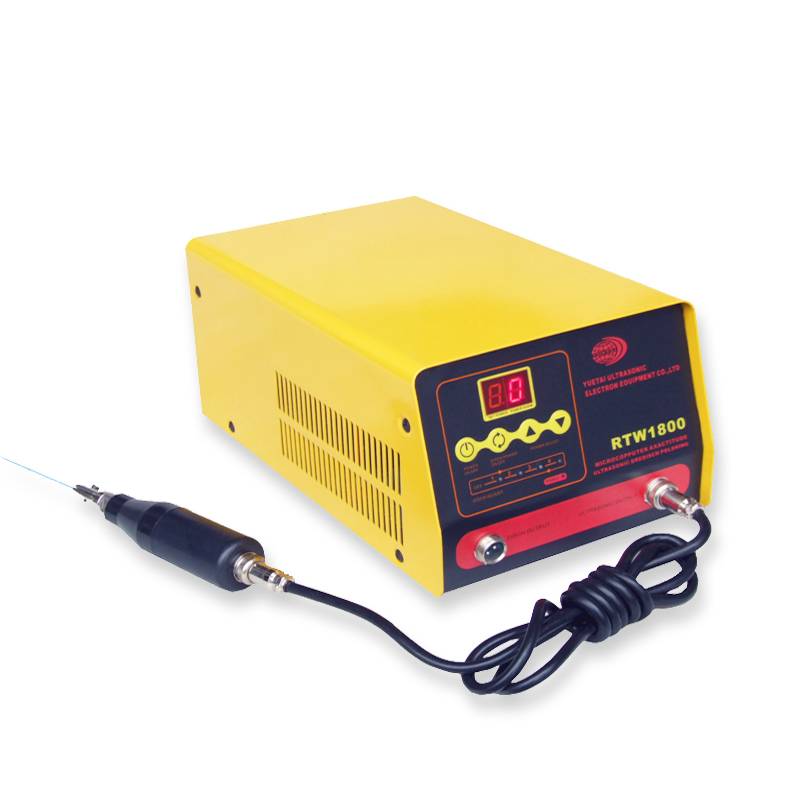

Ultrasonic Polishing Machine RTW1800

Item Name High Quality Hot Sale Low Price Ultrasonic Polishing Machine RTW1800 Machine No. RTW 1800 Voltage AC110V/220V Ultrasonic Power(W) 50W Frequency 20-30KHZ Max Amplitude 45UM Machining Accuracy Ra0.012mm Stroke 20000-30000HZ/second Weight 3.4KG Size 300mm*180mm*140mm Mass Production Time 7-10 days for 10 sets, depends on the order quantity Application scope Metal work piece grinding and polishing, such as the note modethe die-casting modethe pressing mode the forging mode hard wear product.



ACCESSORIES

1) Diamond paste(5pcs)  2) Bamboo piece(5pcs)
3) Bamboo stick(5pcs)     4) Copper stick(5pcs)
5) Amplitude pole(5pcs)  6) Fastering frame(1pcs)
7) Oper spanner(1pcs)     8) Hexagon spanner(1pcs)
9) Power cord(1pcs)

and so on



WORKING PRINCIPLE

YUETAI Mini Ultrasonic Grinding Machines have the function of power automation compensation, the frequency automation tracking
lock, and it can use the various tip implements at more than 20,000 times per second. Maximal amplitude is 50 um, high speed.
Brute force and stable grinding work piece surface can ensure that the implement is in the best syntony state at any time, and
ensure stable power size on certain job requests. Deploying varieties tip implement head can complete rapidly different hardness
materials of complicate cavity such as plastic injection mould, casting mould, forged mould.



MAIN SPECIALTIES

1. Elctricity circuit adopts electrical souce design with up-to-date green energy-saving switch.It has many specialties as
   follows:small volumellight weight energy-saving and environment protecting high source power transfer efficiencyeletricity web
   applys AC110V(AC80C-150V) and AC220V(180V-240V). Switch is very convenient and extension is very wide.2. Ultrasonic circuit control adopts mirco-computer single chip control technology design.Its lock efficiency cincture is wider
   and more precise.And for work pieces with different shape,it has a fine adaptability to make sure that it works on the best
   working frequency range and biggest ultrasonic amplitude,especially fibre stone and so on material-consuming fitting ,whose

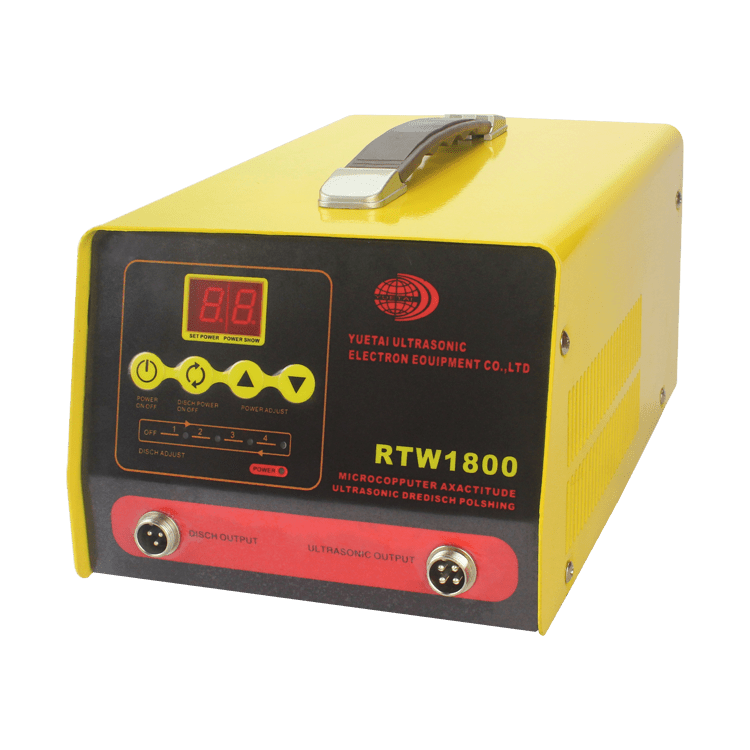

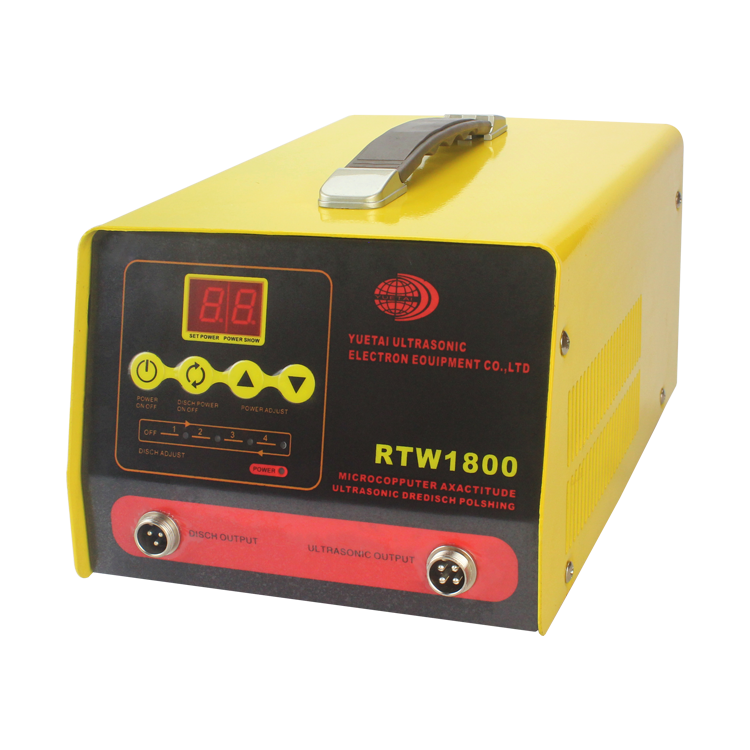

   grinding effect is best.3. The panel operating part uses high-qulity PVC panelintelligent adjustment full light tough electronic switch and has
   characteristies of dust proofwater proofcomfortable handle and good-lookingsimple operationdifficult to aging and difficult to
   damage.4. The control panel adopts two-number display,separately show regulating power and output power;When opening the machine,it has
   the displaying function of work time accumulative total,the most accumulative total shows 99 months,which makes enterprise follow
   and manage usersusing condition very efficienly.5. The spark circuit adopts presently international most advanced digit spark corrosion circuit, changes from three levels to four
   levels,which more adapts to coarsenessly machine original coarseness surface after machining presently market popular
   machine-machining equipment(such as electrical impulseline cuttingmilling machineand lathe) It has characteristies of wide
   rangehigh precisionquicjly cutting big peeling-off electrical corrosion.It also machines complex cavity which is not machined by
   handcraft,such as deep channelnarrow grooveblind holecircle slot and acute angle.When the machine polishs with ultrasonic it can
   finish whole polishing andand grinding process from coarsenessly polishing,extractly polishing to mirror surface for original
   surface roughness Ra>50um.

OPERATE ATTENTIVE MATTERS

1. When start the power, need to join the good cable and operate handles and can turn on the apparatus first, can put through the
   power
   2. When regulate and establish the ultrasonic power, need to lock the amplitude pole of transducer and high level tools
   (consumptive material) at first. Then the power enactment reveals “green”( max.is ” nine ” section),the power output state shows
   “red”(max.is “nine”section); If the power enactment already reveals to be ” 9 ” section, the red lock shining indicator light
   inside the pannel of machine case has also lockde to lighten,and the ultrasonic power output is still on the weak, then you should
   pay attention to little adjust length or shape or angle in order to reach perfect power output state(best swing )
   3. When open the electrical spark and corrosion function button, need to join the ground wire between the electrical spark export
   and the work piece. When the electrical spark and corrosion enactment shows “four”(max.section),the bigger the number,the more
   quick the electrical corrosion,but the bigger the surface coarsene after processing.If the electric spark and corrosion enactment
   has already opened,the red sgining indicator lamp of “1-4”any section lights,but the electrical corrosion does not still export or
   is weak,then you need to check if the ground wire of the electric spark output and the work piece contact well or check the
   electricity-transmiting performance of the spark corrosion’s cooling fluid.



Parameter introduction and comparison of each type machine:

Machine No. RTW1800 RTW1600 RTW1400 RTW1200 RTW600 Voltage AC110V/220V AC110V/220V AC110V/220V AC110V/220V AC110V/220V Ultrasonic power 50W 50W 100W 50W 45W Spark power 250W 250W ———- ———- ———- Power supply High frequency swich High frequency swich High frequency swich High frequency swich/transformation High frequency swich Working time have have have ———- have Operating man/set Only one Only one two Only one Only one Mainframe size(mm) 300*180*140 315*120*185 315*120*185 229*155*90 210*135*90 Mainframe net weight(mm 3.4kg 3.5kg 3.3kg 3.2kg 1.6kg package 340*230*250 340*230*250 340*230*250 350*230*200 250*200*177 Whole machine weight 5.5kg 5.9kg 6.2kg 5.5kg 4kg
